Waterproof GPS Tracker for all Vehicle and Container Coban TK 104-B, Real-time tracking, GPS & GSM
Details
Type: GPS Tracker
Use: Automotive
Screen Size: GPRS tracking online with map
Function: GPS Tracking
Place of Origin: Guangdong, China (Mainland)
Brand Name: Coban
Model Number: TK 104-B
GPRS Protocol: support TCP and UDP protocol
GPS AVL Tracking with anti-theft: Tracking System with fuel sensor & camera
Arm/disarm: ACC/DOOR/SHOCK SENSOR alarm/camera shot
Multi-language web platform: www.gpstrackerxy.com(user:demo,pass:8888
Multi-language: English/Spanish/Portuguese/Arabic/Thai /Italian/German etc
magnetic: yes
large battery:6000mA battery for 60days standby time
Certification: CE FCC
Real-time tracking
Remote shutdown vehicle engine/resume
Geo-fence,SOS USB configure
Functions:
For vehicle (12V-24V)
Location-based service(LBS)
Real-time tracking, voice listen in function
Remote shutdown vehicle engine and resume
Geo-fence, movement, over speed, low battery alarm
Shock sensor alarm, SOS panic button
SMS tracking on cellphone with google maps link
Get absolute address including street name by SMS
Free PC based software for live tracking
Web-based online tracking server www.gpstrackerxy.com
Online Tracking:

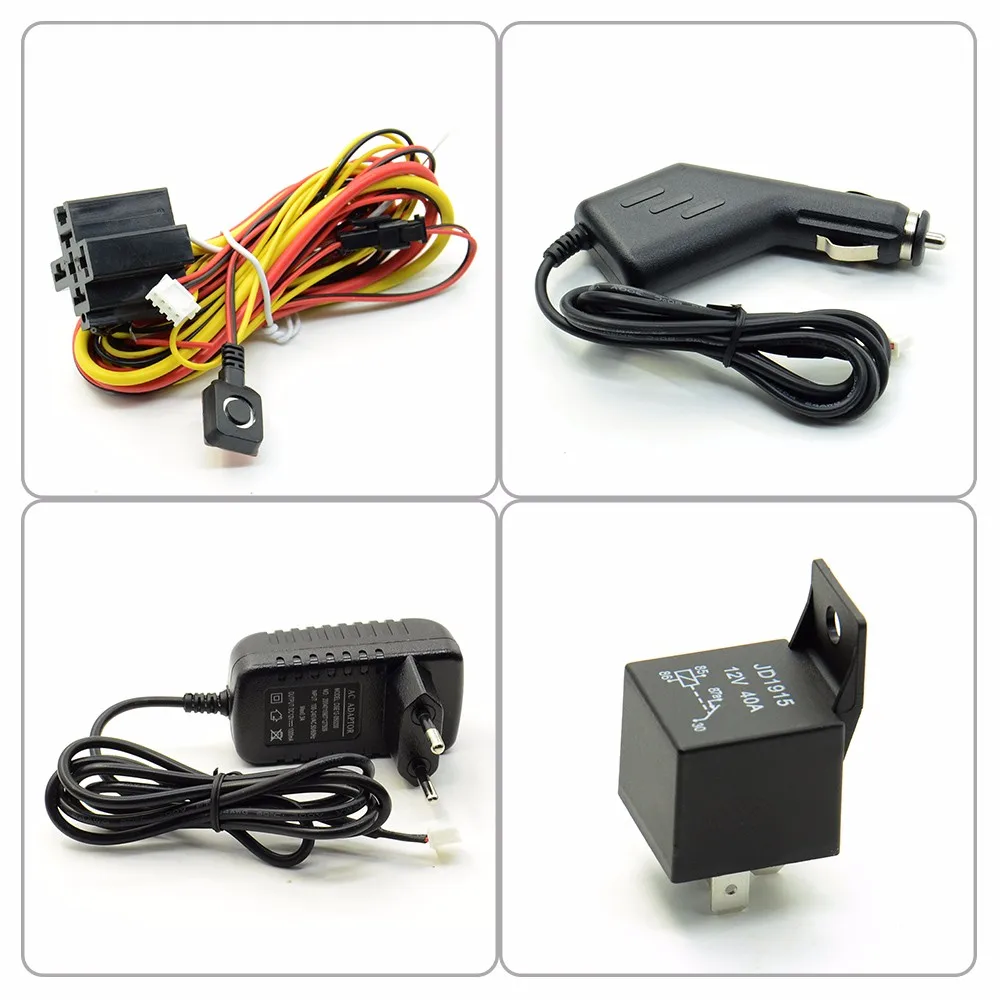

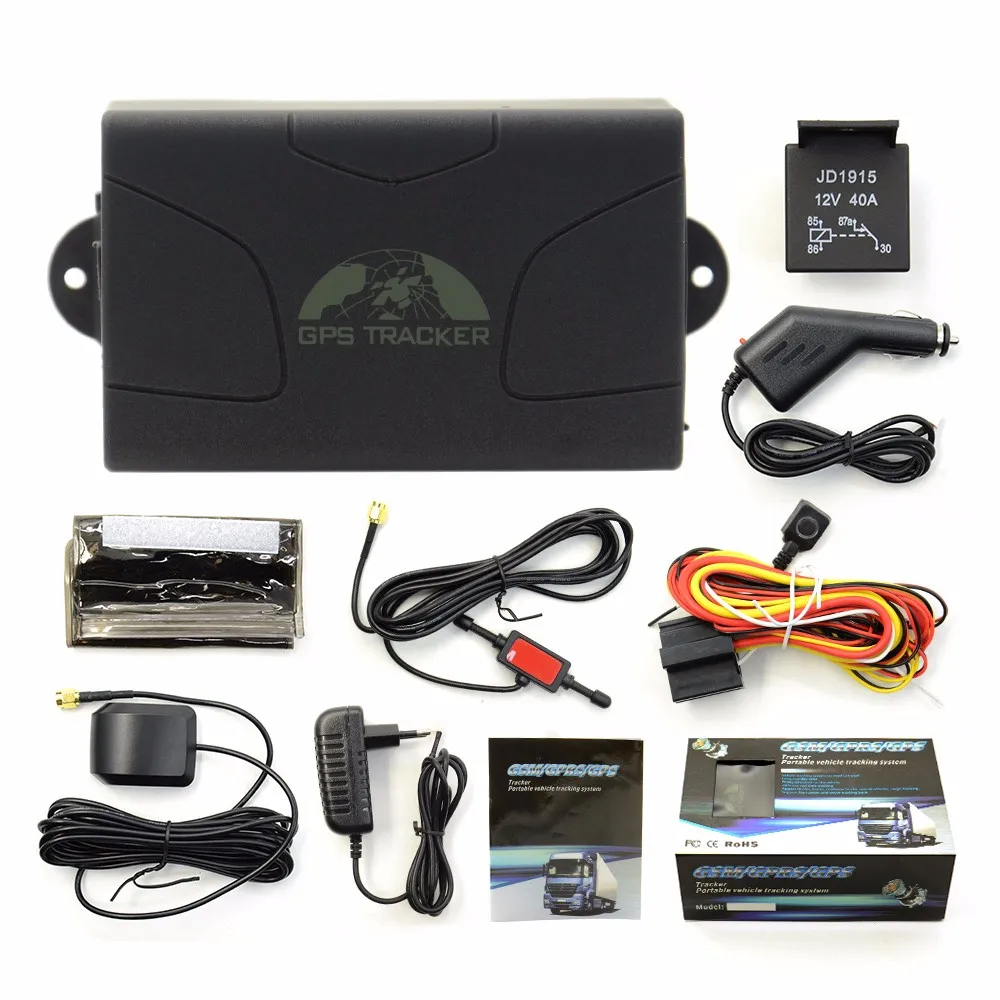

standard and accessories:
GPS Unit(Magnet included)
AC adapter
Harness
Relay for stopping the engine
External GSM antenna
External GPS antenna
Waterproof bag
Cigarette lighter car charger
CD | manual | package
Specification:
Content | specifications | |
DIM. | 94mm*60mm*38mm | |
Weight | 300g | |
Network | GSM/GPRS | |
Band | 850/900/1800/1900Mhz | |
GPS sensitivity | -159dBm | |
GPS Accuracy | 5m | |
GPS Start time | Cold status | 45s |
Hot status | 1s | |
EXT. power | DC 12 V -24V | |
Operating Current | Sleep Current | 1.8mA |
Deep sleep | 0.6mA | |
GSM operating Current | 68mA±3mA | |
GPRS Current(data transfer) | 82mA±10mA | |
Battery | 3.7V 6000mA/h Polymer battery | |
Charge current | 1A±0.2A | |
Charge time | 7h | |
Standby time | Sleep | 4 months |
Deep sleep | 12 months | |
Storage Temp. | -40°C to +85°C | |
Operation Temp. | -20°C to +70°C | |
Humidity | 5%–95% non-condensing |
Setting:
Preparation:
Unlock pin sim card. Before installing the sim card in GPS make sure the sim card in without pin.
Make sure the sim card has enough balance money we recommend more 20 euro. (the GPS can’t use SMS or internet program, it works only by money)
charge the GPS at least for two hours and located in an open area ( Any GPS Can’t work under the roof)
The default password is: 123456
Send SMS to GPS:
Reset123456
Begin123456
Admin123456 Your phone Number
(Call your GPS and wait for SMS location)
Send SMS to GPS:
GPRS123456
APN123456 internet
(this mane is different for any cell phone company. Search online for more information. {ANPcompany name?}
For example (APN of Cosmote sim is internet)
(APN of Vodafone international sim is internet.vodafone.gr)
(APN od wind F2G is gint.d-online.gr)
up123456 user no
time zone123456 +2
(Put out the sim card of GPS for a minute and Put in Again)
When the blue line is flash 3 second on time the GPS is ready
Call the GPS and see the SMS for local Position
Serf the app and Observe online.
Online:
Your Should register on the app before online usage. chose “server 3”
PC online: www.gpstrackerxy.com /// Registration> login> system setting> terminal management> Add ( fill the tables ) save
Mobile app: Trakerhome
if it is still offline:
1- Check the Battery
2- Check the Balance money
3- Check ANP information is right.
4-Check the GPRS mode. (SMS: check123456) if GPRS is off
Send SMS: GPRS123456
Send SMS: adminip123456 104.250.138.146 9000
then send SMS check123456, the GPRS mode should be ON
Change password:
Send SMS to GPS
password123456 new-pass
for more settings read the user manual.
Packaging Details
Box size: 13cm*19cm* 5.8cm
Gross weight 0.88kg
Carton size 54cm*40cm*31cm
